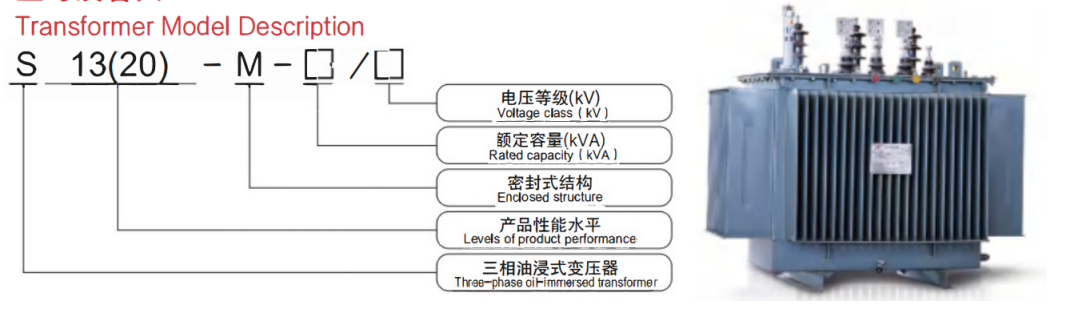

S13~S22 Series 10kV~35kV Low-loss And Non-exciting  Regutation Power Transformer Product Introduction

This product implements national stangards GB1094-1996 the power transformer “and GB/T6451-2008 the three-phase oil-immersed power transformer technical parameters and requirements". S13 series transformer is the latest series of low loss copper windings products,the products using high-guality materials. in coil implement body and insulation.using new craft, new material, thus made racing load loss reduced siqnificantly, and performance and structure more reliable and superior.

S13~S22 Series 10kV-35kV Low-loss And Non-exciting Reaulation Power Transformer Product Features

Good economic performance
S13-S22 series product in the S9 series based on average reduced 30% no-load loss than idle current S9 70%-85% will.
Long service life
Transformer tank adopts full seal structure, the tank along with box available bolt connection or welding die, transformer oil not contact with air and prolong the life.
Running high reliability
Tank sealing parts were concerned, increased reliability improvements to ensure and improve technology levelof reliability of sealing.
Field area is small
S13-M, S22-M series transformer tank adopts wave plate radialor, when the oil temperature change corrugated plate heat bilges cold shrink can replace storage cabinet role, corrugated plate appearance tank, cover an area of an area small.
