Application scope

ZSLC1-D series AC contactor (simplified as contactorin the following) is suitable for using in the circuits up to the rated voltage 66oV AC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting,controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking devce etc,it is combined into the delay contactor, mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter, with the thermal relay, it is combined into the electromagnetic
starter.

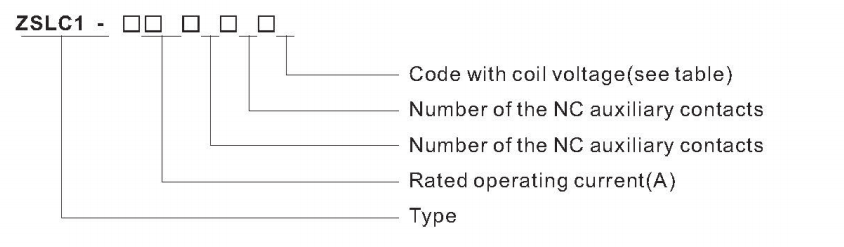

TYPE AND MEANING

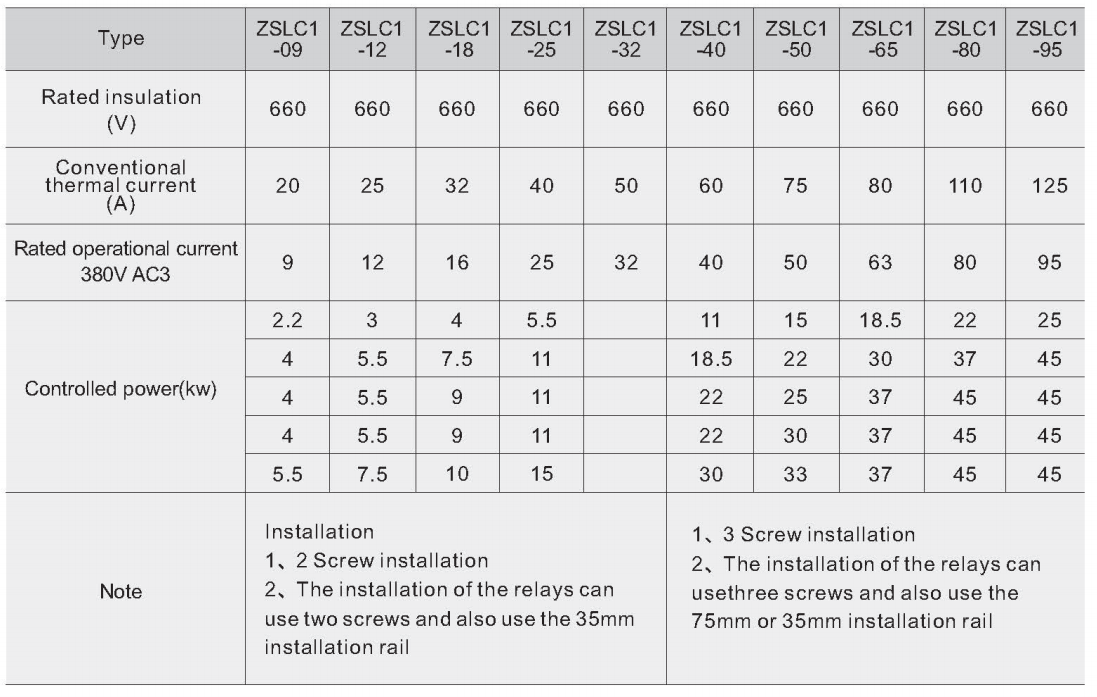

SPECIFICATIONS

Note:3P:Three qairs of main contacts,NO:one pair of No auxiliary contacts.
NC:one pair of NC auxiliary contacts.
