Application scope

ZS LC1-F series AC contactor (the follovings are called contactor ), it is used in 50Hz or 60Hz, allocated special with coil. Which can be used in the circuit of 40-40oHz, voltage up to 660V, current up to less than 630A electriccircuits, It is maining used for putting through and breaking the main circuit and also for frequently starting and controlling motor. It can unify the general electrical equipment, motor and circuit. The auxiliary contact group.Air time-delay head. Mechanical interlock contactor and star-triangle starter. The thermal-relay it can form the magnetic
starter.

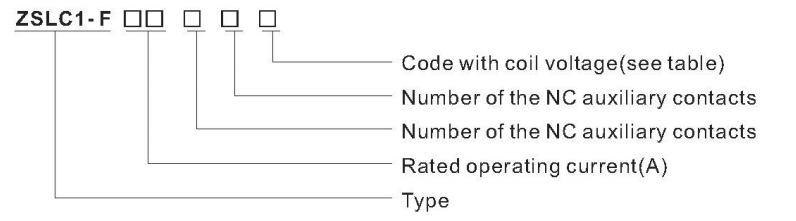

TYPE AND MEANING

Application scope

With fine and compact strcture. Function moulding, and cordwood assembly seero liner line layout, The contactor is protective type, the acting mechanism is line motion type, the contact is doublebreaking point.Add mechanical interlock oorganization between two contactors to form mechanical interlock contactor(reversible shift contactor).

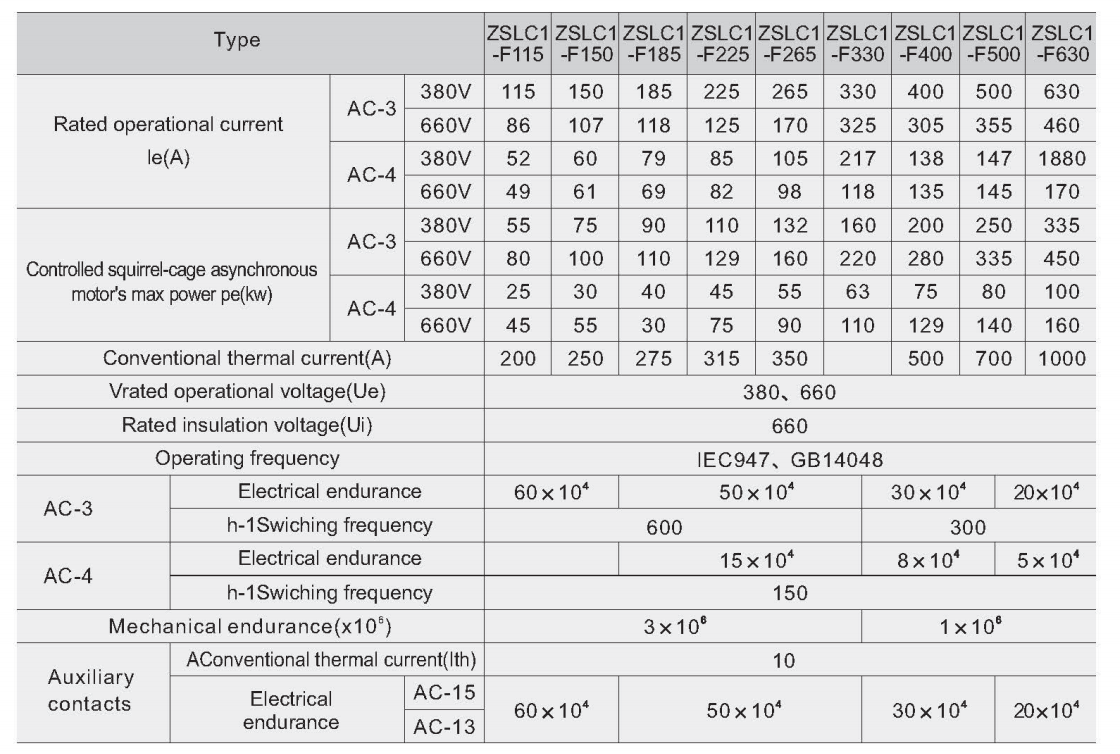

SPECIFICATIONS
