Product overview

Installed at the output end of the frequency converter, it is used to limit the capacitive chargingcurrent of the cable connecting the frequency converter and the motor, and to passivate thevoltage rise rate of the PWM wave output by the frequency converter. When the length of the motorcable exceeds a certain value, it is recommended to insert a motor reactor between the frequencyconverter and the motor. Used to compensate for the recharging current of capacitors in longwires. This length depends on the rated value of the frequency converter and the type of motorcable.

Product Applicatior

Limit dv/dt to 500V/usLimit the overvoltage on the motor terminals to 1000V to 400V~(rmsvalue) 1150V460V~(rms value)Filter interference caused by opening the contactor between thefilter and the motorReduce motor grounding leakage current.

Technical specifications

· Workingvoltage:220VAC-3300VAC

.Operatingfrequency:50/60HzRated current:3A-1600ACarrierfrequency: 2-8KHZ

.Insulation Class:Class F.H
.Operating environment:-10~+45 'c, rated value will not decrease. Up to+55 'c, above 45 c, for every 1 °c increase,the rated current decreases by2%.

.Protection level: lP00-|P22Pressure drop:<4%, Exceeding this range will cause torque lossMaximum current: 1.5times ratedcurrent,lastingfor60 seconds

.Noise:lessthanorequalto 65dB,Temperature rise:≤85K

.Electrical strength: lron core winding3000VAc/50Hz/5mA/10s without flyingfox breakdown (factory test)

.Insulationresistance:1000VDCinsulation resistance≥100M Ω
.Altitudenotexceeding2000

.metersOperating environmenttemperature:-25 °c~+45°c,relative humidity not exceeding90%,

.There are no harmful gases or flammable or explosive materials aroundThe surrounding environment shouldhave good ventilation conditions.

.lfinstalledin a cabinet,ventilation equipment should beinstalled.

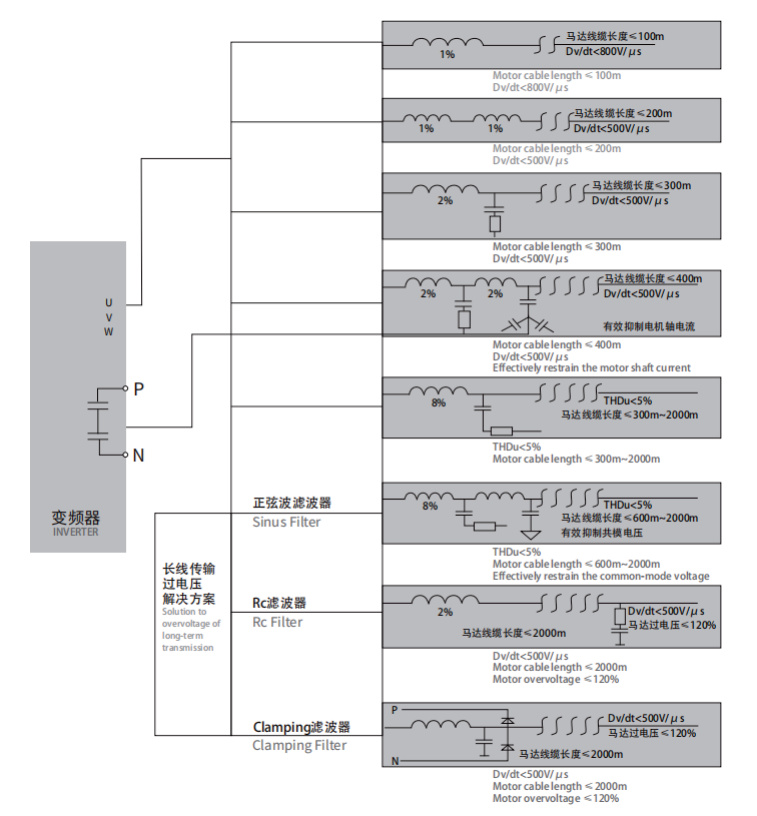

Variable frequencyinput solution

Execution standards

· IEC289:1987 Reactor
· GB10229-88 Reactor(eqvlEC289:1987)

· JB9644-1999 Reactorusedforsemiconductorelectrical driving

Product overview

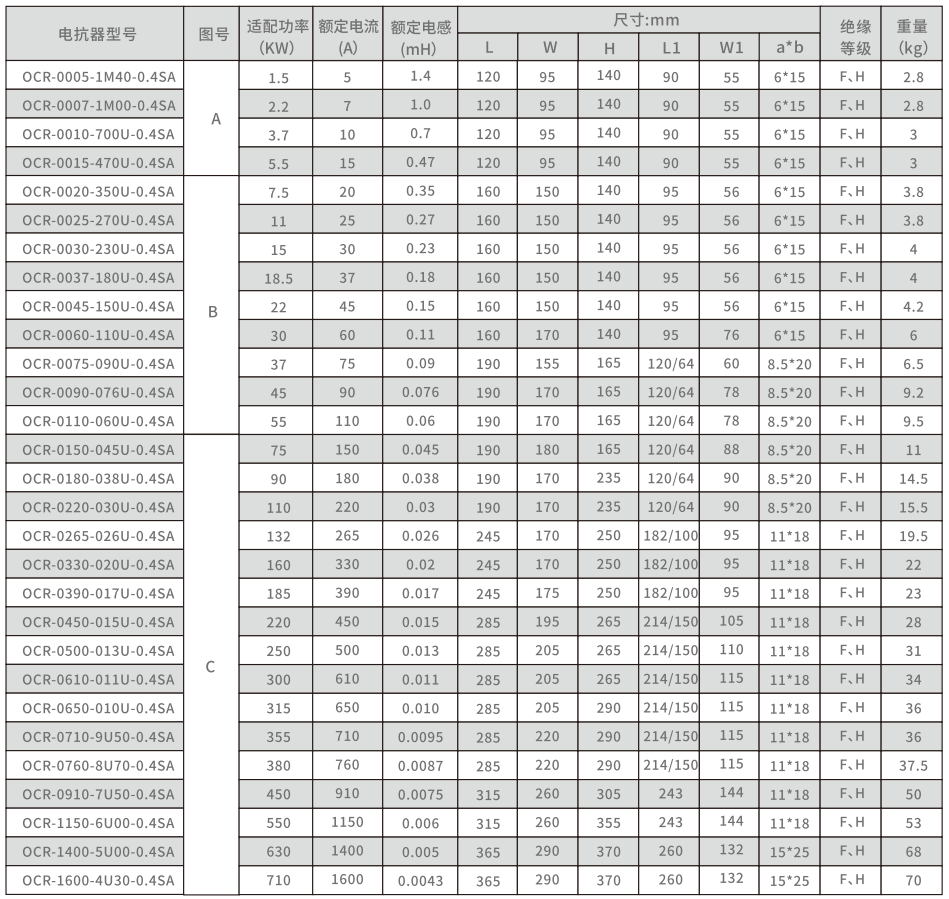

3-380VAC 1% voltage drop output reactor

Note: "A" above represents that the winding material is aluminum, and "C" represents that the winding material is copper.
2. The above are our regular standard sizes. Please contact our business personnel for specific parameters when placing an order; Non standard customization is possible.

3-690VAC 1% voltage drop output reactor

Note: "A" above represents that the winding material is aluminum, and "C" represents that the winding material is copper.
2. The above are our regular standard sizes. Please contact our business personnel for specific parameters when placing an order; Non standard customization is possible.
