Product overview

The extensive use of modern power electronic devices generates nonlinear currents that affect thepower grid in a harmonic manner, exacerbating grid pollution and causing overload and failure otcapacitors, transformers, and transmission equipment. This causes serious interferenceresonance,and voltage distortion to measurement, transmission, calculation, and othelequipment, leading to power supply accidents. Series reactors can be improved and avoidedAfter connecting capacitors in series with reactors, the resonant frequency is lower than the lowestin the system (usually 5th and 7th), making it capacitive at power frequency to improve powerfactor. In resonance, there is no filtering of amplified harmonics, and after good impedancematching, the capacitor bank can absorb 30% -60% of harmonic current (such as 5th).

Product Applicatior

· lmprove the distortion ofinput current waveform caused by capacitor filtering;

· Reduce and prevent damage to rectifier bridges and overheating of capacitors caused bysurge currents:
· lmprove power factor and reduce DC bus AC pulses;
· improve the transient voltage of the power grid:logether with capacitors connected inparallel, suppress or filter out DC ripple to eliminate adverse effects on the load

Technical specifications

. Workingvoltage:220VAC-1140VAC
. Operatingfrequency:50/60Hz
. Workingcurrent:3A-1600A
. Insulation Class:Class F.H
. Operating environment: -10...+45°c, rated value will not decrease. Up to+55 °c, above 45 °c, forevery1°Cincrease,the rated current decreases by2%

. Protection level: lP00-|P22Maximum current: 1.5 times rated current, lasting for 60 seconds.

. Noise:<65dB,Temperature rise:≤ 85K.

. Electrical strength: lron core winding 3000VAC/50Hz/5mA/10s without flying fox breakdown(factory test

. Insulationresistance:1000VDCinsulation resistance≥100MΩ

. Altitude not exceeding 2000 metersOperating environment temperature: -25 °c~+45 °c, relativehumidity not exceeding 90%There are no harmful gases or flammable or explosive materialsaroundThe surrounding environment should have good ventilation conditions. lf installed in acabinet,ventilationequipmentshould beinstalled.

Execution standards

· IEC289:1987 Reactor
· GB10229-88 Reactor(eqvlEC289:1987)

· JB9644-1999 Reactorsused for semiconductorelectrical driving

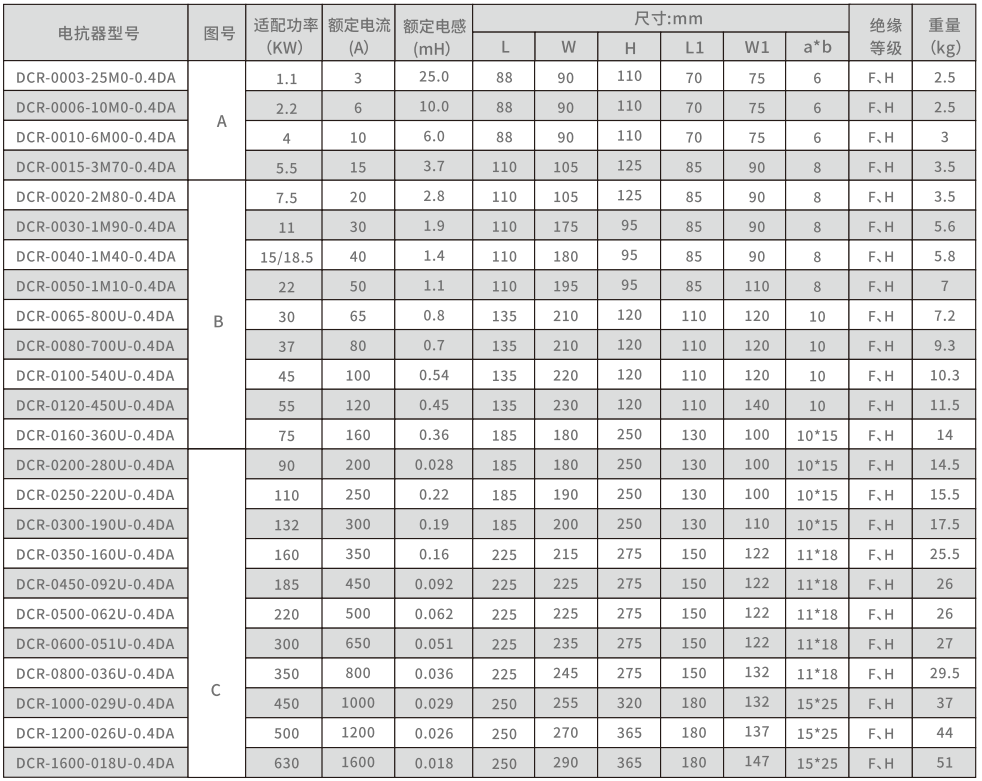

Product overview

System voltage: 3-AC400V

Note: "A" above represents that the winding material is aluminum, and "C" represents that the winding material is copper.
2. The above are our regular standard sizes. Please contact our business personnel for specific parameters when placing an order; Non standard customization is possible.
